4.2 Limited Functional Test (Bench Test)

After the power-on reset, the ADS is in the standby operation mode. Typical HKs are described in table 36. The values for +5 V, +12 V, -5 V and -12 V may differ, if there is no Electronic Interface Box. For the bench test setup see figure 42. The equipment is described in section 4.1.

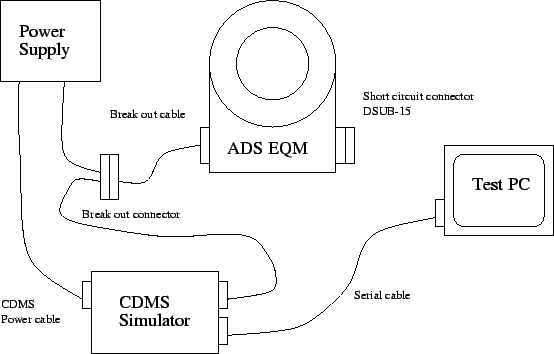

**Figure 42:** Bench Test Setup *(short circuit connector not provided for QM)*
$\begin{figure}\begin{center} \epsfig{file=benchtest.eps} \end{center}\end{figure}$

Table 36: Typical Standby Houskeeping Data

Register	Description	Range
HK7	Synchronsation	0xAA55h
HK6	Control	0x00 (may differ)
HK5	Status	0x11
HK4	+5 V current	196 (0x00C4) $\dots$ 360 (0x0168)
		60 $\dots$ 110 mA
HK3	+12 V current	65 (0x0041) $\dots$ 260 (0x0104)
		10 $\dots$ 40 mA
HK2	+28 V current	0 (0x00) $\dots$ 7 (0x07)
		0 $\dots$ 2 mA
HK1	-5 V current	983 (0x03D7) $\dots$ 2295 (0x08F7)
		30 $\dots$ 70 mA
HK0	-12 V current	131 (0x0083) $\dots$ 400 (0x0190)
		4 $\dots$ 12 mA

For the Valve 1 test, you have to send the TC open valve 1 (0EA15). You should hear the click of the valve. Typical HKs are described in table 37. For the Valve 2 test you have to send the TC open valve 2 (0E817). The HKs are also described in table 37. Switch on only one Valve or one Tank Opener at the same time. You can switch off Valve 1 with the TC close valve 1 (0E916) (TC for Valve 2 is 0E718).

Table 37: Typical Standby Houskeeping Data with a valve open

Register	Description	Range
HK7	Synchronsation	0xAA55h
HK6	Control	0x00 (may differ)
HK5	Status	0x11
HK4	+5 V current	196 (0x00C4) $\dots$ 360 (0x0168)
		60 $\dots$ 110 mA
HK3	+12 V current	65 (0x0041) $\dots$ 260 (0x0104)
		10 $\dots$ 40 mA
HK2	+28 V current	2265 (0x08D9) $\dots$ 3396 (0x0D44)
		600 $\dots$ 900 mA
HK1	-5 V current	983 (0x03D7) $\dots$ 2295 (0x08F7)
		30 $\dots$ 70 mA
HK0	-12 V current	131 (0x0083) $\dots$ 400 (0x0190)
		4 $\dots$ 12 mA

For the Tank Opener 1 test, you have to send the TC activate tank opener 1 (0E619). Typical HKs are described in table 38. For the Tank Opener 2 test you have to send the TC activate tank opener 2 (0E41B). The HKs are also described in table 38. Switch on only one Valve or one Tank Opener at the same time. You can switch off Tank Opener 1 with the TC stop tank opener (0E51A) (TC for Tank Opener 2 is 0E31C).

Table 38: Typical Standby Houskeeping Data with a tank opener activated

Register	Description	Range
HK7	Synchronsation	0xAA55
HK6	Control	0x00 (may differ)
HK5	Status	0x11
HK4	+5 V current	196 (0x00C4) $\dots$ 360 (0x0168)
		60 $\dots$ 110 mA
HK3	+12 V current	65 (0x0041) $\dots$ 260 (0x0104)
		10 $\dots$ 40 mA
HK2	+28 V current	1886 (0x075E) $\dots$ 3019 (0x0BcB)
		500 $\dots$ 800 mA
HK1	-5 V current	983 (0x03D7) $\dots$ 2295 (0x08F7)
		30 $\dots$ 70 mA
HK0	-12 V current	131 (0x0083) $\dots$ 400 (0x0190)
		4 $\dots$ 12 mA

To check the Pipe Pressure, the Tank Pressure and the Acceleration, you have to change to the Health Check operation mode. You can send the TC set operation mode (0DE21) with parameter 2. Typical HKs are described in table 39.

Table 39: Typical Health Check Houskeeping Data

Register	Description	Range
HK7	Synchronsation	0xAA55
HK6	Control	see table 5
HK5	Status	0x21
HK4	+5 V current	196 (0x00C4) $\dots$ 360 (0x0168),
		60 $\dots$ 110 mA
HK3	Temperature	0 (may differ)
HK2	Acceleration	0 (0x0000) $\dots$ 4095 (0x0FFF)
HK1	Pipe Pressure	0 (0x0000) $\dots$ 58 (0x003A)
		tank is sealed
HK0	Tank Pressure	0 (0x0000) $\dots$ 3100 (0x0C1C)
		0 $\dots$ 80 bar
