Difference: WestsideG5 (1 vs. 7)

Revision 72022-12-22 - PeterSchmid

Line: 1 to 1
Changed:
<
<
META TOPICPARENT name="WebHome"
>
>
META TOPICPARENT name="KitsAndProjects"

Remotoring Westside PRR G5 4-6-0 Ten Wheeler
Changed:
<
<
Original Olympia Model
>
>
Original Westside Model
 http://trainmaster.ch/ZX-684.htm

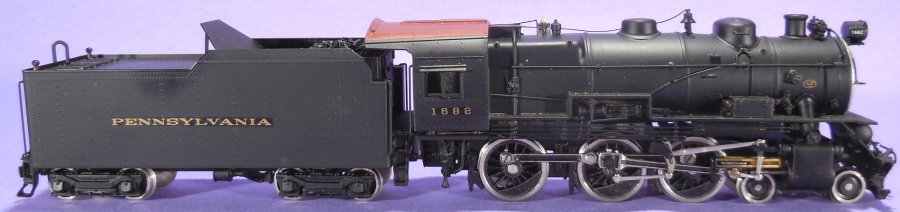

Some pictures from the seller's website http://trainmaster.ch/

Line: 38 to 38

Coreless DC Motor

Coreless DC Motor

Added:
>
>
I replaced the open frame motor with a coreless DC motor Maxon A-max 16 12V/2W. The motor starts at about 2 V and draws 130 mA.


Shafts and U-Joints from NWSL

Line: 142 to 144
  Creative Commons License
This work by Peter Schmid is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
Deleted:
<
<
http://trainmaster.ch/ZX-676.htm

Title

Article text.

https://en.wikipedia.org/wiki/Pennsylvania_Railroad_class_G5

http://trainmaster.ch/ZX-684.htm

-- Peter Schmid - 2021-01-08


META FILEATTACHMENT attachment="Pennsylvania_Railroad_5741.jpg" attr="" comment="" date="1653658757" name="Pennsylvania_Railroad_5741.jpg" path="Pennsylvania_Railroad_5741.jpg" size="2255928" user="PeterSchmid" version="1"
META FILEATTACHMENT attachment="UL-084-02.jpg" attr="" comment="" date="1653675843" name="UL-084-02.jpg" path="UL-084-02.jpg" size="40183" user="PeterSchmid" version="1"
META FILEATTACHMENT attachment="UL-084-11.jpg" attr="" comment="" date="1653675843" name="UL-084-11.jpg" path="UL-084-11.jpg" size="43101" user="PeterSchmid" version="1"

Revision 62022-05-27 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="WebHome"
%DASHBOARD{ section="banner"
Line: 9 to 9

Original Olympia Model
Added:
>
>
Some pictures from the seller's website http://trainmaster.ch/



Prototype
Line: 148 to 157
 -- Peter Schmid - 2021-01-08

META FILEATTACHMENT attachment="Pennsylvania_Railroad_5741.jpg" attr="" comment="" date="1653658757" name="Pennsylvania_Railroad_5741.jpg" path="Pennsylvania_Railroad_5741.jpg" size="2255928" user="PeterSchmid" version="1"
Added:
>
>
META FILEATTACHMENT attachment="UL-084-02.jpg" attr="" comment="" date="1653675843" name="UL-084-02.jpg" path="UL-084-02.jpg" size="40183" user="PeterSchmid" version="1"
META FILEATTACHMENT attachment="UL-084-11.jpg" attr="" comment="" date="1653675843" name="UL-084-11.jpg" path="UL-084-11.jpg" size="43101" user="PeterSchmid" version="1"
META FILEATTACHMENT attachment="UL-084-05.jpg" attr="" comment="" date="1653675843" name="UL-084-05.jpg" path="UL-084-05.jpg" size="21107" user="PeterSchmid" version="1"
META FILEATTACHMENT attachment="UL-084-06.jpg" attr="" comment="" date="1653675843" name="UL-084-06.jpg" path="UL-084-06.jpg" size="41428" user="PeterSchmid" version="1"
META FILEATTACHMENT attachment="UL-084-10.jpg" attr="" comment="" date="1653675843" name="UL-084-10.jpg" path="UL-084-10.jpg" size="37533" user="PeterSchmid" version="1"

Revision 52022-05-27 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="WebHome"
%DASHBOARD{ section="banner"
Line: 14 to 14

Prototype
90 G5s locomotives were built for the PRR between 1923 and 1925 at the railroad's Juniata Shops in Altoona, Pennsylvania. Thirty-one more were built between 1924 and 1929 for the Long Island Rail Road, then a PRR subsidiary. https://en.wikipedia.org/wiki/Pennsylvania_Railroad_class_G5
Added:
>
>
Pennsylvania Railroad 5741.jpg
From Wikimedia Commons, the free media repository

Same boiler as H8 and E6.



Contents
Line: 140 to 146
 http://trainmaster.ch/ZX-684.htm

-- Peter Schmid - 2021-01-08 \ No newline at end of file

Added:
>
>
META FILEATTACHMENT attachment="Pennsylvania_Railroad_5741.jpg" attr="" comment="" date="1653658757" name="Pennsylvania_Railroad_5741.jpg" path="Pennsylvania_Railroad_5741.jpg" size="2255928" user="PeterSchmid" version="1"

Revision 42021-01-24 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="WebHome"
%DASHBOARD{ section="banner" image="/twiki/pub/MRR/OlympiaH10s/G5-H10.jpg"
Changed:
<
<
title="Remotoring Westside PRR G5 4-6-0 Tenwheeler"
>
>
title="Remotoring Westside PRR G5 4-6-0 Ten Wheeler"
  titlestyle="color:#F00000;" }%
Original Olympia Model
Line: 12 to 12


Prototype
Added:
>
>
90 G5s locomotives were built for the PRR between 1923 and 1925 at the railroad's Juniata Shops in Altoona, Pennsylvania. Thirty-one more were built between 1924 and 1929 for the Long Island Rail Road, then a PRR subsidiary.
 https://en.wikipedia.org/wiki/Pennsylvania_Railroad_class_G5

Revision 32021-01-24 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="WebHome"
%DASHBOARD{ section="banner"
Line: 7 to 7
  titlestyle="color:#F00000;" }%
Original Olympia Model
Added:
>
>
http://trainmaster.ch/ZX-684.htm


Prototype

Revision 22021-01-24 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="WebHome"
Added:
>
>
Remotoring Westside PRR G5 4-6-0 Tenwheeler
Original Olympia Model

Coreless DC Motor

Coreless DC Motor

Shafts and U-Joints from NWSL

Roller Test Stand Videos

Decoder Installation (Sound & Light)

Docs

Soundtraxx Tsunami2 TSU-2200

Wiring

Locomotive

Color NMRA JST Pin# Loco Header Pin# Function
Red 8 1 Right Rail Pickup
Orange 7 2 Motor(+)
Gray 3 3 Motor (-)
White 5 4 Headlight
Green 9 5 FX3 (Ashpan Flicker CV 51: 23+128=151, F24)
Blue 6 6 Function Common (+12V)

Tender

Color NMRA JST Pin# Function
Black 2 Left Rail Pickup
Yellow 4 [Backup Light]
Blue 6 [Function Common (+12V)]
Purple - Speaker (+)
Purple - Speaker (-)
Blue - Current Keeper [Function Common (+12V)?]
Black - Current Keeper [Ground?]

Spare

Color NMRA JST Pin# Function
Brown 1 FX4
Green/White - FX5
Brown/White - FX6

Sound Configuration

Function CV Value Type
Sound Configuration 1 112 4
Fuel Type   +1+2, 0 Hand-shoveled Coal
Injector   +4, 4 lifting
Power reverser   +8, 0 disabled
3-cylinder exhaust   +16, 0 disabled
Articulated wheel-slip   +32+64, 0 disabled
Articulated exhaust   +128, 0 disabled
Engine Exhaust Control 114 90 faster, for 4 chuffs per revolution
Whistle 120 42 PRR Round Top 3-Chime
Bell 122 15 Medium Brass 2
Exhaust Chuffs 123 4 (default, Medium 2)
Airpump 124 3 (default, cross compound 2)
Dynamo 125 2 (default, dynamo 3)
Coupler Select 126
Poppet Valve Release Rate 200

Motor Configuration

Function CV Value Type
BEMF Cutoff 10
PID Kp Parameter 209
PID Ki Parameter 210
Low-Speed Compensation 211
BEMF Feedback Intensity 212
Low-Speed Compensation 211
BEMF Sample Period 213   default 15
BEMF Sample Aperture Time 214   default 15
BEMF Reference Voltage 215   6 to 25.5 V (60 .. 255)

https://sites.google.com/site/markgurries/home/decoders/decoder-motor-tuning/soundtraxx

Headlight

Finished Model

Finished Model

-- Peter Schmid - 2018-10-27

Creative Commons License
This work by Peter Schmid is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

http://trainmaster.ch/ZX-676.htm



Title

Article text.

Revision 12021-01-08 - PeterSchmid

Line: 1 to 1
Added:
>
>
META TOPICPARENT name="WebHome"

Title

Article text.

https://en.wikipedia.org/wiki/Pennsylvania_Railroad_class_G5

http://trainmaster.ch/ZX-684.htm

-- Peter Schmid - 2021-01-08
