H0n30 0-4-0 Porter

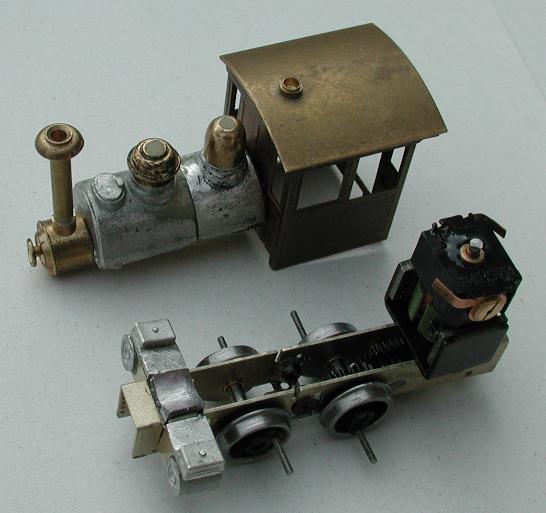

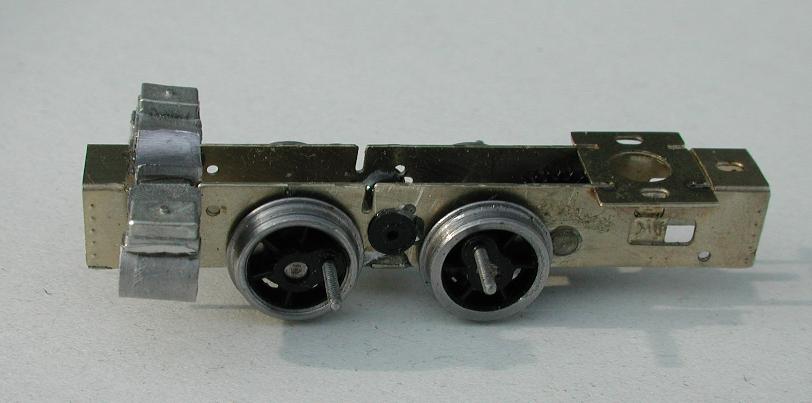

The chassis is from a Backwoods Miniatures Bagnall. Actually an 009 (00 1:76 scale, 9 mm gauge) kit for only 40.00 GBP, available direct from the manufacturer. The chassis kit includes some etched nickel-silver parts (mainframe, rods, crosshead, etc.) motor (Mashima), wheels and gears. It is a superb slow runner due the 54:1 gear ratio. The superstructure is cannibalized from a Joe Works 0-4-0 Porter. I used 2 saddletanks for my new Porter (the second saddletank came from a Joe Works RGS 0-6-0T). The Joe Works locomotives have never worked reliable.

If you would like to use also a Backwoods Miniatures Bagnall chassis for your locmotive projects, here are some measurements. The Baldwin 2-4-2T would be also good starting point for a conversion.

Bagnall 0-4-0

Description H0 00 mm
Rigid Wheel Base 4' 3' 6" 14 mm
Drivers 31" 27" 9 mm
Frame Length 14' 10" 13' 52 mm
Width 6' 5" 5' 7" 22.5 mm
Height 10' 8' 9" 35 mm

Baldwin 2-4-2T LYN, Lynton & Barnstaple Railway

Description H0 00 mm
Rigid Wheel Base 5' 8" 5' 20 mm
Drivers 36" 32" 10.5mm
Wheel Base, Total 20' 17' 5" 70 mm
Wheels 21" 19" 6.3 mm
Frame Length 27' 1" 23' 8" 95 mm
Width 8' 2" 7' 1" 28.5 mm
Height 10' 3" 9' 36 mm

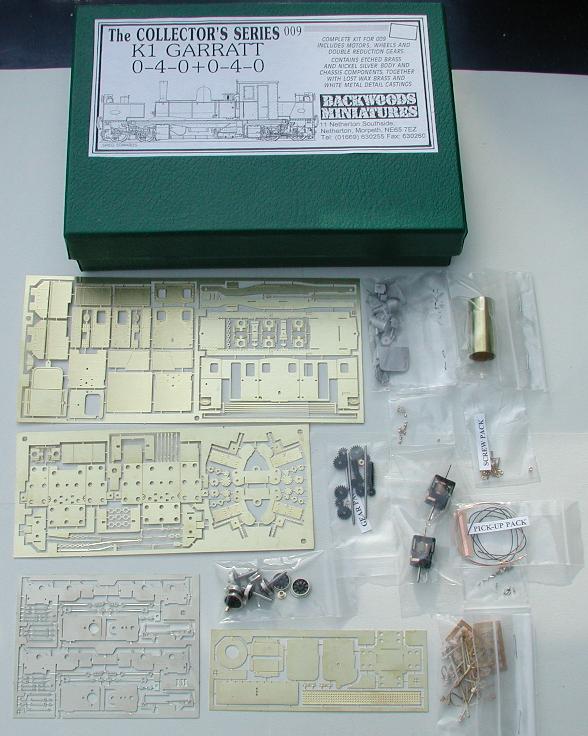

A Backwoods kit looks like this (Baldwin 2-4-2T and K1 Garrat):
