Driver epd.c, fonts from https://www.mikrocontroller.net/topic/54860.

Code page 850

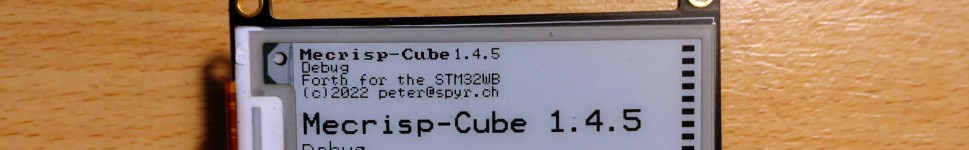

EPD and SPI Words

epd-emit works like the standard word emit. It blocks the calling thread, as long as the character is not written to the EPD display. Horizontal (x) position is in pixel (0 to 249), vertical position (y) is in lines, a line consists of 8 pixels. 0, 0 is upper left corner. Larger fonts takes more than one line.

epd-emit     ( Char -- )        Emits a character (writes a character to the EPD framebuffer)
epd-emit?    ( -- Flag )        EPD ready to get a character (SPI not busy)

hook-emit    ( -- a-addr )      Hooks for redirecting terminal IO on the fly
hook-emit?   ( -- a-addr )

epdpos!      ( x y -- )         Set EPD cursor position,
                                x horizontal position, pixel resolution, e.g. 0 to 249 for 250x122 displays.
                                y vertical position (line), max. 15 for  250x122 displays.
epdpos@      (  -- x y )        Get the current EPD cursor position
epdclr       (  -- )            Clears the EPD display, sets the cursor to 0, 0
epdfont      ( u -- )           Select the font, u: 0 6x8, 1 8x8, 2 8X16 , 3 12X16

epdupdate    (  --  )           Update the display (copy the framebuffer to the display)
epdpartial   ( x1 y1 x2 y2 -- ) Partial update the display
epdcmd       ( c-addr -- )      Send command to the EPD controller SSD1680. First byte contains the length of the command.

epdpixel!    ( Flag x y -- )    not implemented yet
epdpixel@    ( x y -- Flag )    not implemented yet
epdcolumn!   ( u -- )           Write a column (8 pixels) to the current position. Increment position. Bit 0 on top
epdcolumn@   ( -- u )           Read a column (8 pixels) from the current position

>epd         ( -- addr1 addr2 ) redirect to EPD *)
>term        ( addr1 addr2 -- ) terminate redirection *)

*) part of redirection.fs

Usage

It is easy to redirect the terminal output to the EPD display, to use the string formatting words.

: epd-hallo (  -- )
  hook-emit @              \ save emit hook
  ['] epd-emit hook-emit !  \ redirect terminal to epd-emit
  ." Hallo Velo! " cr
  ." ciao"
  epdupdate
  hook-emit !         \ restore old hook
;

or even simpler

: epd-hallo (  -- )
  >epd         \ redirect terminal to epd-emit
  ." Hallo Velo! " cr
  ." ciao"
  epdupdate
  >term         \ terminate redirection
;

or on a command line

>epd .( Hallo Velo!) epdupdate >term

show date and time on EPD (see CmsisRtos#How_to_use_Tasks for a background task).

: clock (  -- )
  epdclr
  3 epdfont
  -1 -1 -1 alarm!  \ set an alarm every second
  begin
    wait-alarm     \ wait a second
    0 0 epdpos!
    >epd epdpos@ .time epdpos@ epdpart >term
  key? until
  key drop
;

Driver, Links

SSD1680 Driver

One byte display memory contains 8 pixels. Logical 0 is black, logical 1 is white. Most significant bit is first pixel.

250 x 122

Portrait

• 122 columns * 31 1/4 rows
• resolution 122 * 250
• 20 * 31 chars (8*6 chars)

Landscape

• 250 columns * 15 1/4 rows
• resolution 250 * 122
• 41 * 15 chars (8*6 chars)

Driver SW

• https://www.solomon-systech.com/product/ssd1680-80a/
• Datasheet
• Adafruit EPD Library

• https://www.good-display.com/news/134.html partial update

Other EPDs with SSD1680

• 2.9" E-Ink Grayscale FeatherWing #4777 https://www.adafruit.com/product/4777
• 2.13" E-Ink Monochrome FeatherWing #4195 250x122 Pixel https://www.adafruit.com/product/4195 (pinouts
• E-Ink Feather Friend #4446 https://www.adafruit.com/product/4446 (schematics)

Graphics File Formats

• Portable BitMap, binary P4 and ASCII P1 variant
  • https://en.wikipedia.org/wiki/Netpbm#File_formats
  • http://netpbm.sourceforge.net/doc/pbm.html
• X PixMap (XPM), usable in C-Files
  • https://en.wikipedia.org/wiki/X_PixMap
• X BitMap (XBM), plain text binary in C .h
  • upper left pixel in the bitmap represented by the low bit of the first byte in the array
  • https://en.wikipedia.org/wiki/X_BitMap

Portable BitMap, binary P4

• https://en.wikipedia.org/wiki/Netpbm#File_formats
• http://netpbm.sourceforge.net/doc/pbm.html

.pbm

P1
# This is an example bitmap of the letter "J"
6 10
0 0 0 0 1 0
0 0 0 0 1 0
0 0 0 0 1 0
0 0 0 0 1 0
0 0 0 0 1 0
0 0 0 0 1 0
1 0 0 0 1 0
0 1 1 1 0 0
0 0 0 0 0 0
0 0 0 0 0 0

P4
# This is an example bitmap of the letter "J"
6 10
08080808080888700000

ImageMagick

ImageMagick

$ magick -rotate 90 -flip image.png image.pbm
