Barnington Layout

This layout has no strict prototype but it is inspired by the Farmington junction. In Farmington the Maine Central Railroad (standard gauge) met the narrow gauge Sandy River & Rangeley Lakes Railroad. The junction had some interesting crossings that are the main reason for me to build this layout.

Track Plan

Click to see large version

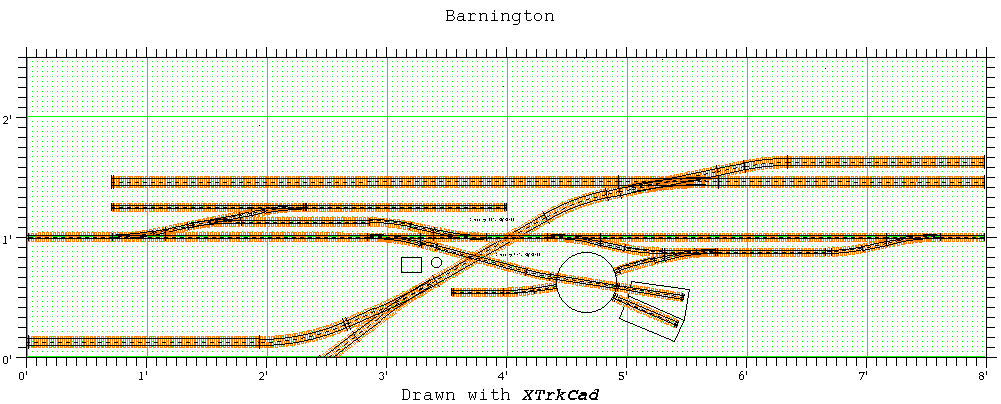

I drew the track plan with XTrkCad. XTrkCad is a powerful CAD program for designing Model Railroad layouts. It is available for GNU/Linux and Windows and it is free!

My drawing is downloadable and free for use.

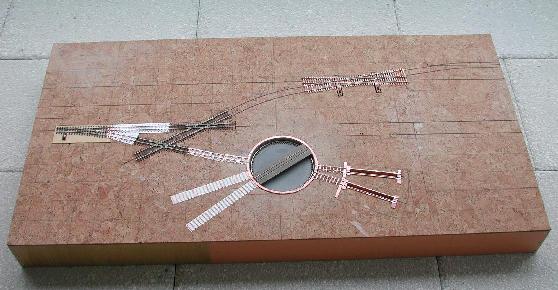

Module Engine Terminal

Click to see large version

Click to see large version

Click to see large version

Click to see large version

Trackwork

For details see TrackWork.

Structures

  • The two stall roundhouse has its prototype from Kennebec Central and is a Stevens Creek Models laser kit.
  • The turntable begun its life as a N scale Peco turntable. My brother milled down the plastic deck about 0.8 mm. For the new wooden deck I glued single woodstrips. I removed the cast on pit rail and replaced it with code 55 rail on shortened ties. The turntable diameter is about 43 scale feet, just long enough for my largest Pine River Short Line engine, a Sango 2-6-0 Dachshund.

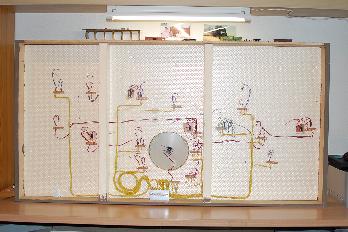

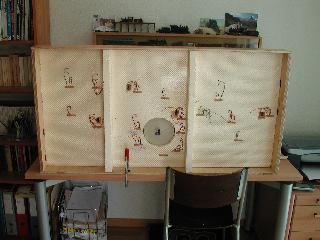

Electrical Wiring, Control

  • 19 blocks, gaps for both rails
  • Two-cab control with SPDT center-off toggle switches
  • Hand thrown switches with powered frogs

Click to see large version

Click to see large version

Click to see large version

Click to see large version

Notes

-- PeterSchmid - 2011-05-09

Creative Commons License
This work by Peter Schmid is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
