Mecrisp-Cube for STM32WB
Intro MecrispCubeWB
Mecrisp-Cube Forth for the STM32WB family.

Forth is an interactive and extensible language, with built-in lexical analysis (tokenizer, parser) and interpreter/compiler, needs less than 20 KiB Flash and 4 KiB RAM, unbelievable for a self-contained (self-hosted) system.

Mecrisp-Cube Instant real-time programming with Forth.

STM32WB Series has two CPUs. An ARM Cortex M4 for the application (CPU1) and a Cortex M0+ (CPU2) for the BLE protocol stack. This Forth system runs on the CPU1. Developed with the same technology as the ultra-low power STM32L4 microcontrollers, the STM32WB MCU series provides the same digital and analog peripherals suitable for applications requiring an extended battery life and complex functionalities. If you do not need wireless connectivity, thanks to CubeMX you can easily adapt MecrispCubeWB for STM32L4, and probably for STM32L5, and STM32U5.

Sources on GitHub.

See ForthSTM32WB for standard Mecrisp-Stellaris for the STM32WB.

Features

The standard Mecrisp-Cube features like RTOS, Filesystem, USB, etc.

Getting Started

These instructions will get you a copy of the project up and running on your local machine (STM32WB55 Nucleo board) for development and testing purposes.

Prerequisites

  • STM32WB Nucleo Board - The highly affordable STM32 Nucleo boards allow anyone to try out new ideas and to quickly create prototypes with any STM32 MCU. The STM32 Nucleo boards integrate an ST-Link debugger/programmer, so there is no need for a separate probe.
  • Terminal emulator application for PC, e.g.:
    • PuTTY - Windows and Linux
    • Tera Term - Windows
    • Realterm - Windows
    • minicom, microcom, screen - Linux
    • Use the built in Eclipse console (but no LF)

Flash the Mecrisp-Cube binary or the FS binary with local filesystem and some tools to the Nucleo Board.

  1. Connect the Nucleo Board USB ST-LINK to the PC
  2. Copy binary (MecrispCube.bin) to the USB mass storage NODE_WB55RG

Start the terminal emulator application on the PC. Check for the serial communication port (e.g. for Linux /dev/ttyACM0) and set the speed to 115200 baud. I set the putty terminal configuration to

  • Implicit CR in every LF
  • Local echo: Auto
  • Local line editing: Auto
  • Keyboard Backspace: Control-H
  • Keyboard Function: Keys VT100
  • Remote character set: CP850

Mecrisp-Stellaris RA 2.5.4 by Matthias Koch.

Mecrisp-Cube 1.4.4 for STM32WB55, 63/128 KiB RAM/FLASH dictionary (C) 2021 peter@spyr.ch
  * Firmware Package STM32Cube FW_WB V1.11.0, USB-CDC, BLE Stack 5.0 (C) 2021 STMicroelectronics
  * CMSIS-RTOS V2 FreeRTOS wrapper, FreeRTOS Kernel V10.3.1 (C) 2020 Amazon.com
  * FatFs for internal flash and microSD - Generic FAT fs module  R0.12c (C) 2017 ChaN
  * tiny vi - part of BusyBox (C) 2000, 2001 Sterling Huxley

23 5 / .[CR] 4  ok.
: hello ." World" ;[CR]  ok.
hello[CR] World ok.

Installing

A step by step series of examples that tell you how to get a development env running

Install the IDE STM32CubeIDE, it is Eclipse and GCC based. STM32CubeMX is included in the IDE, you need a stand alone installation only if you do not want to use the STM32CubeIDE.

Get the sources from github:

psi@homer:~> git clone https://github.com/spyren/Mecrisp-Cube
Klone nach 'Mecrisp-Cube' ...
remote: Enumerating objects: 106, done.
remote: Counting objects: 100% (106/106), done.
remote: Compressing objects: 100% (71/71), done.
remote: Total 106 (delta 33), reused 106 (delta 33), pack-reused 0
Empfange Objekte: 100% (106/106), 938.96 KiB | 2.39 MiB/s, Fertig.
Löse Unterschiede auf: 100% (33/33), Fertig.

Import the project into the IDE:

File -> Import -> General -> Existing Projects into Workspace -> Select root directory
Copy project into workspace
Browse to Mecrisp-Cube directory

Generate code from the STM32CubeMX MecrispCube.ioc file:

Project -> Generate Code

Restore changed source files

$ git status
{list of changed files}
$ git restore {files to restore}
Or stash the changes away
$ git stash
$ git stash drop

Select the Build Configuration (Debug if you want to debug the project) and Build the project:

Project -> Build Configurations -> Set Active -> Debug/Reelease
Project -> Build Project

STM32WB Development Boards

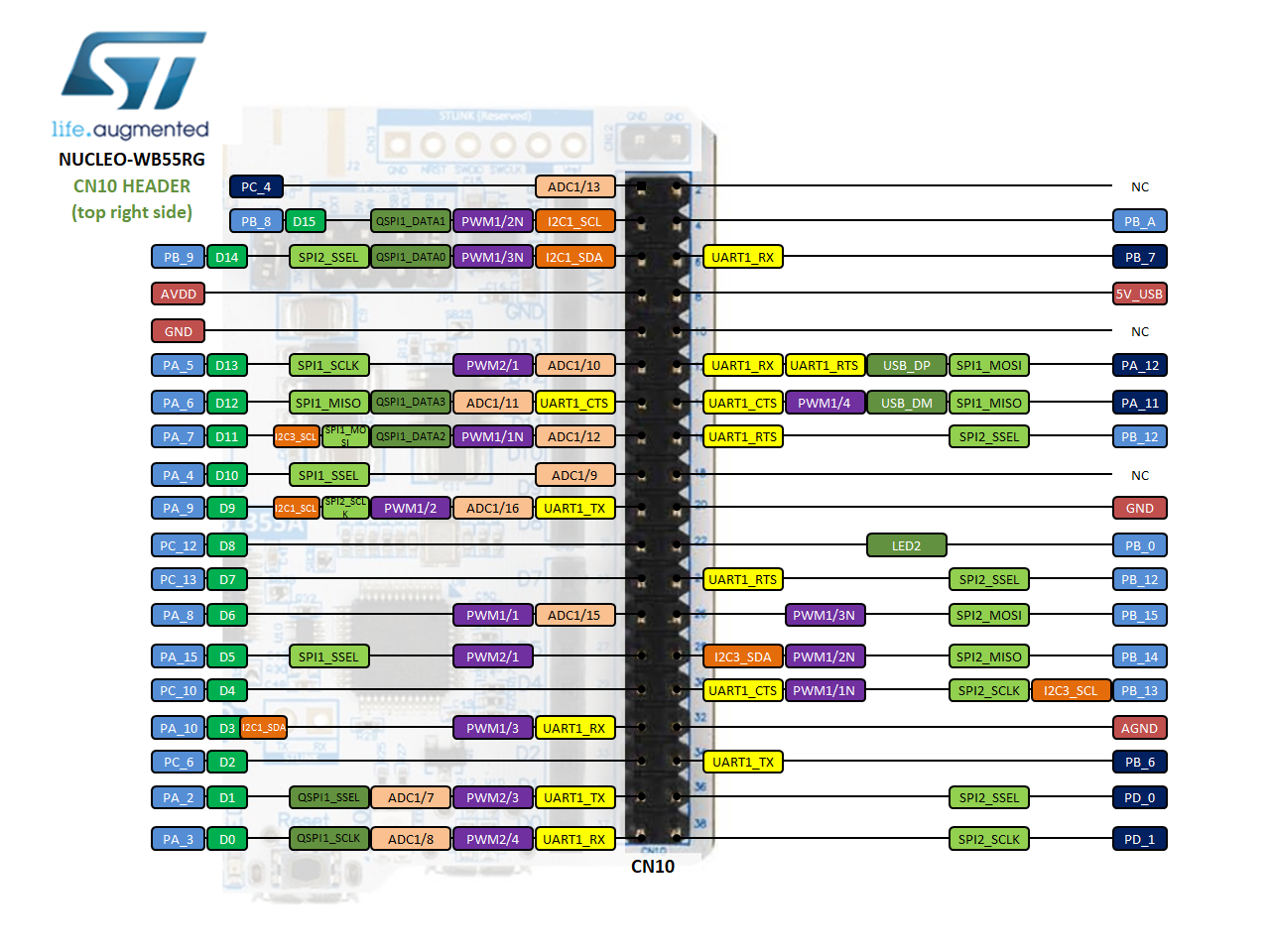

STM32WB Nucleo Board


Board Support Package for the Nucleo STM32WB Board and the Dongle.

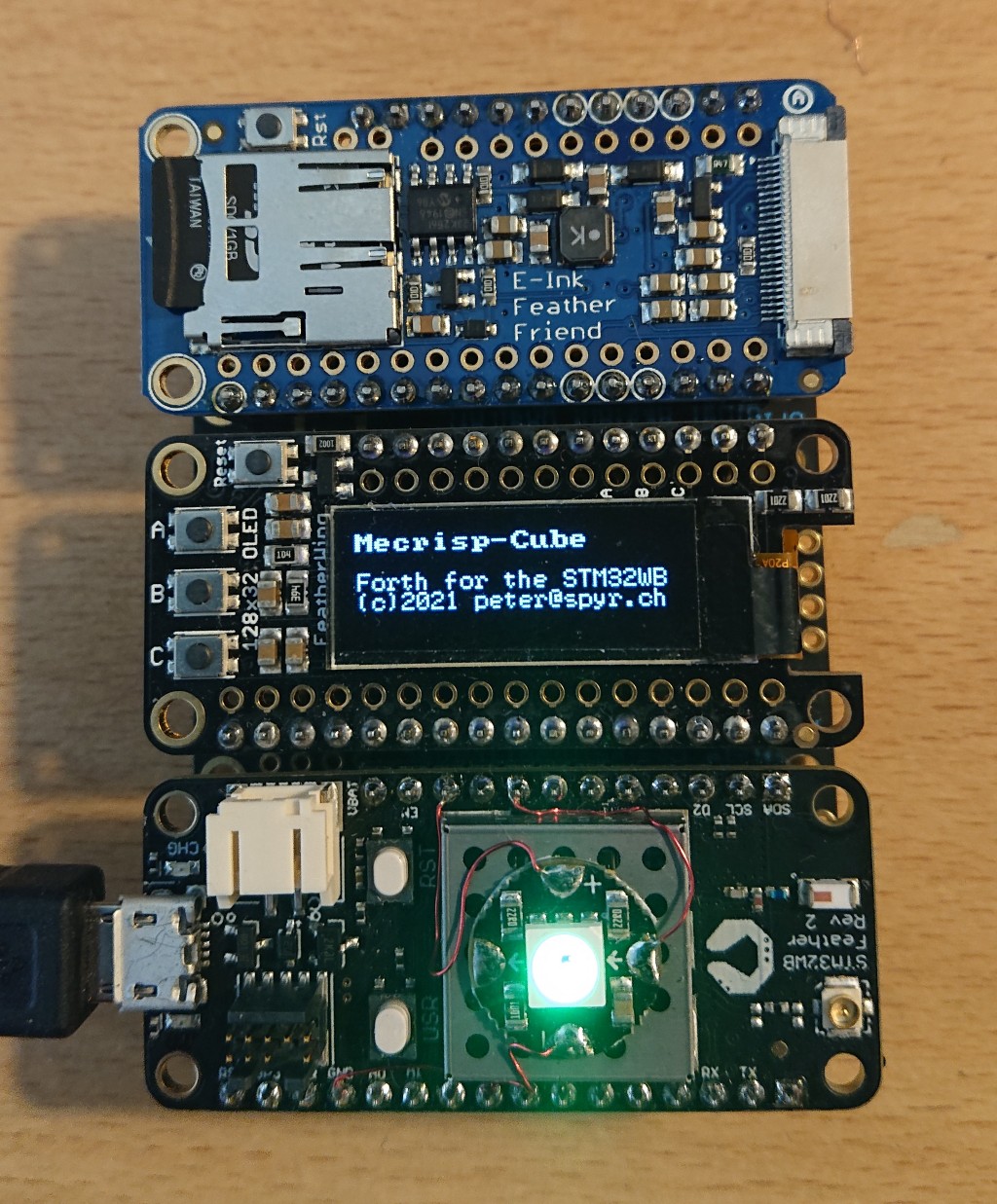

STM32WB Feather Development Board

This Adafruit Feather compatible development board is from Reclaimer Labs. You can find more information about this excellent board on the Reclaimer Labs Site and an overview of the Adafruit Feather boards.

Board Support Package BSP for STM32WB Feather development board

For a dongle adapter see BoardSupportPackageWB#Nucleo_Dongle_Feather_Adaptor

STM32WB55 Discovery Kit STM32WB5MM-DK

https://www.st.com/en/evaluation-tools/stm32wb5mm-dk.html

Board Support Package BSP for the STM32WB5MM Discovery Kit.

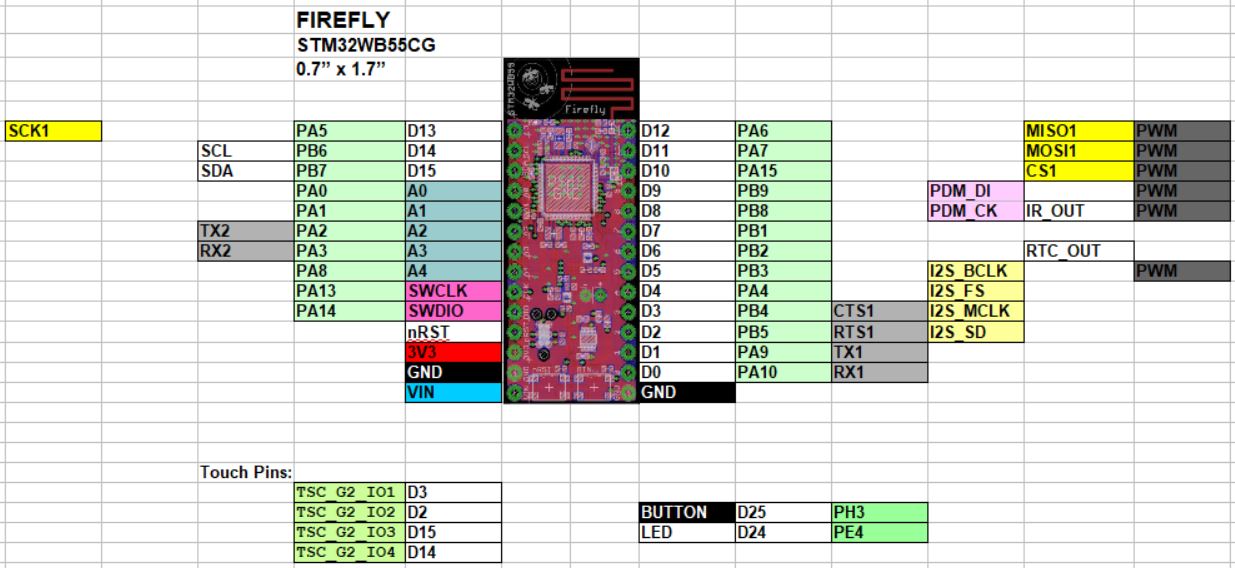

Firefly, Katydid, Mothra

For more details see Firefly BLE Development Board and Board Support Package

Built With

  • STM32CubeIDE is an all-in-one multi-OS development tool, which is part of the STM32Cube software ecosystem. The IDE is used for development, GCC tools are included.
  • STM32CubeMX is a graphical tool that allows a very easy configuration of STM32 microcontrollers and microprocessors, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core), through a step-by-step process.
  • STM32CubeProg is an all-in-one multi-OS software tool for programming STM32 products. the Java GUI does not work for me, but the CLI does. See STM Wiki

Flash Mecrisp-Cube to the Target

Alternate ways to flash Mecrisp-Cube to the target. For the easy way see MecrispCubeWB#Prerequisites.

Nucleo Board

Connect Nucleo's ST-LINK USB to you PC. Erase the flash e.g. by openOCD, we use 768 KiB Right 192 sectors.

$ telnet localhost 4444
Trying ::1...
telnet: connect to address ::1: Connection refused
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
Open On-Chip Debugger
> reset init
Unable to match requested speed 500 kHz, using 480 kHz
Unable to match requested speed 500 kHz, using 480 kHz
target halted due to debug-request, current mode: Thread
xPSR: 0x01000000 pc: 0x08003aae msp: 0x20000430
> flash erase_sector 0 0 192
erased sectors 0 through 192 on flash bank 0 in 4.583453s
> flash write_image mecrisp-stellaris-stm32wb55.hex
device idcode = 0x20016495 (STM32WB5x - Rev: 2.1)
flash size = 1024kbytes
flash mode : single-bank
Padding 4 bytes to keep 8-byte write size
block write succeeded
wrote 15404 bytes from file mecrisp-stellaris-stm32wb55.hex in 0.329747s (45.620 KiB/s)

> shutdown
shutdown command invoked
Connection closed by foreign host.

USB Dongle

The USB Dongle does not have a ST-Link interface, but the STM32WB has a built-in boot-loader. This bootloader works via USB. As programming tool I use the CLI from the STM32CubeProg package.

$ alias cubepgmcli='/opt/STMicroelectronics/STM32Cube/STM32CubeProgrammer/bin/STM32_Programmer_CLI'
$ cubepgmcli -c port=USB1 -e [0 191]
$ cubepgmcli -c port=USB1 -d Release/MecrispCube.bin 0x8000000
$ cubepgmcli -c port=USB1 -ob displ

BTW you can flash the Nucleo Board in the same way.

Update BLE Stack

You can find the BLE Stack and FUS in STM32CubeWB or from GitHub, in the directory Projects/STM32WB_Copro_Wireless_Binaries. At time of writing the FUS is Version 1.2.0, the stack v1.4.1. The STM32CubeProgrammer is v2.11.0.

Nucleo board: Using USB_USER interface and the built-in bootloader (activate with jumper between CN7.5 and CN7.7)

$ alias cubepgmcli='/opt/STMicroelectronics/STM32Cube/STM32CubeProgrammer/bin/STM32_Programmer_CLI'
$ cd STM32Cube_FW_WB_V1.14.1/Projects/STM32WB_Copro_Wireless_Binaries/STM32WB5x
$ cubepgmcli -c port=USB1 -fwdelete
$ cubepgmcli -c port=USB1 -fwupgrade stm32wb5x_FUS_fw.bin 0x080EC000 firstinstall=0
$ cubepgmcli -c port=USB1 -fwupgrade stm32wb5x_FUS_fw_for_fus_0_5_3.bin 0x080EC000 firstinstall=0
$ cubepgmcli -c port=USB1 -fwupgrade stm32wb5x_BLE_Stack_full_fw.bin 0x080CB000 firstinstall=1

Using STM32 Cube Programmer (here to show the option bytes, SBRV : 0x32C00 means start address 4 * SBRV + 0x08000000 = 0x080CB000, 3D000 means there is no stack):

psi@homer:~/Dropbox/wbForth/CubeWB> cubepgmcli -c port=SWD -ob displ
      -------------------------------------------------------------------
                        STM32CubeProgrammer v2.4.0
      -------------------------------------------------------------------

ST-LINK SN  : 066BFF313335415043141250
ST-LINK FW  : V2J36M26
Voltage     : 3,22V
SWD freq    : 4000 KHz
Connect mode: Normal
Reset mode  : Software reset
Device ID   : 0x495
Device name : STM32WB55xx
Flash size  : 1 MBytes
Device type : MCU
Device CPU  : Cortex-M0+/M4


UPLOADING OPTION BYTES DATA ...

  Bank          : 0x00
  Address       : 0x58004020
  Size          : 104 Bytes

[==================================================] 100%


OPTION BYTES BANK: 0

   Read Out Protection:

     RDP          : 0xAA (Level 0, no protection)

   BOR Level:

     BOR_LEV      : 0x0 (BOR Level 0 reset level threshold is around 1.7 V)

   User Configuration:

     nBOOT0       : 0x1 (nBOOT0=1 Boot from main Flash)
     nBOOT1       : 0x1 (Boot from code area if BOOT0=0 otherwise system Flash)
     nSWBOOT0     : 0x1 (BOOT0 taken from PH3/BOOT0 pin)
     SRAM2RST     : 0x0 (SRAM2 erased when a system reset occurs)
     SRAM2PE      : 0x1 (SRAM2 parity check disable)
     nRST_STOP    : 0x1 (No reset generated when entering the Stop mode)
     nRST_STDBY   : 0x1 (No reset generated when entering the Standby mode)
     nRSTSHDW     : 0x1 (No reset generated when entering the Shutdown mode)
     WWDGSW       : 0x1 (Software window watchdog)
     IWGDSTDBY    : 0x1 (Independent watchdog counter running in Standby mode)
     IWDGSTOP     : 0x1 (Independent watchdog counter running in Stop mode)
     IWDGSW       : 0x1 (Software independent watchdog)
     IPCCDBA      : 0x0  (0x0)

   Security Configuration Option bytes:

     ESE          : 0x1 (Security enabled)
     SFSA         : 0xCB  (0xCB)
     FSD          : 0x0 (System and Flash secure)
     DDS          : 0x1 (CPU2 debug access disabled)
     C2OPT        : 0x1 (SBRV will address Flash)
     NBRSD        : 0x0 (SRAM2b is secure)
     SNBRSA       : 0xF  (0xF)
     BRSD         : 0x0 (SRAM2a is secure)
     SBRSA        : 0xA  (0xA)
     SBRV         : 0x32C00  (0x32C00)

   PCROP Protection:

     PCROP1A_STRT : 0x1FF  (0x8000FF8)
     PCROP1A_END  : 0x0  (0x8000008)
     PCROP_RDP    : 0x1 (PCROP zone is erased when RDP is decreased)
     PCROP1B_STRT : 0x1FF  (0x8000FF8)
     PCROP1B_END  : 0x0  (0x8000008)

   Write Protection:

     WRP1A_STRT   : 0xFF  (0x80FF000)
     WRP1A_END    : 0x0  (0x8000000)
     WRP1B_STRT   : 0xFF  (0x80FF000)
     WRP1B_END    : 0x0  (0x8000000)

Alternate way to erase the flash memory (change the Memory Read Protection from Level 1 to level 0):

$ cubepgmcli -c port=swd -ob rdp=0xbb
$ cubepgmcli -c port=swd -rdu

Copyright

Authors

License

This project Mecrsip-Cube is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version.

Mecrsip-Cube is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Mecrsip-Cube. If not, see http://www.gnu.org/licenses/.

Acknowledgments

-- Peter Schmid - 2019-12-29

Creative Commons License
This work by Peter Schmid is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
